Model Quantization Pipeline

This pipeline automates the process of quantizing machine learning models. It handles downloading the model from Hugging Face, quantizing it, uploading the quantized version to S3 (MinIO), and evaluating its accuracy.

Pipeline Overview

The pipeline consists of the following stages:

  1. Create PVC: Creates a Persistent Volume Claim for storing model data

  2. Download Model: Downloads the specified model from Hugging Face Hub

  3. Quantize Model: Performs model quantization (supports int8 quantization)

  4. Upload Model: Uploads the quantized model to a S3 (MinIO) storage location

  5. Evaluate Model: Evaluates the quantized model’s accuracy

  6. Delete PVC: Cleans up by deleting the PVC after completion

Prerequisites

  • Python 3.12

  • Kubeflow Pipelines SDK (kfp and kfp_kubernetes)

  • Access to OpenShift AI (formerly Red Hat OpenShift Data Science)

  • S3-compatible storage data connection configured in OpenShift AI

Workbench Installation Instructions

We are going to reuse the workbench created at Section 3.

As we stopped the workbench we need to start it again to use it to modify/compile the pipeline
03 workbench done

Inside the workbench we create a terminal session:

05 create terminal

And install the required dependencies:

pip install -U kfp===2.9.0 kfp-kubernetes===1.3.0

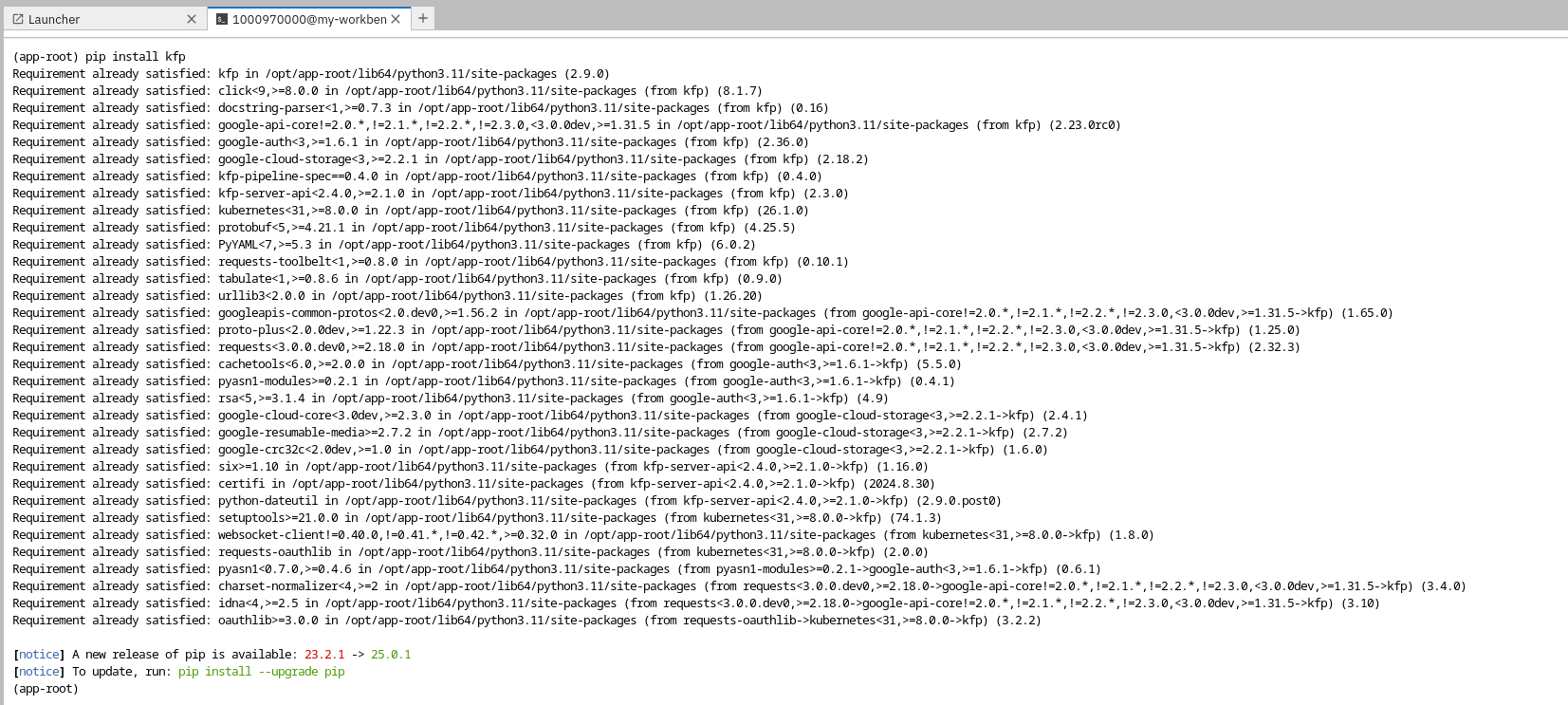

05 install kfp
There is some inconsistency on the yaml generated depending on the versions, so please ensure you are using this ones

Compiling the Pipeline

To compile the pipeline into a YAML file that can be imported into OpenShift AI:

cd /opt/app-root/src/neural-magic-workshop/lab-materials/05/
python quantization_pipeline.py

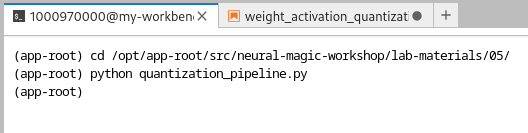

05 compile pipeline
🚨 Before compiling the pipeline, if you have not use Minio - models as your dataconnection name, you need to adjust the line secret_name = "minio-models" to point to the actual name of your dataconnection, otherwise the upload-model task will fail to find the right secret. Note the spaces are removed and it is lowercase.

This will generate a quantization_pipeline.yaml file. Download it to your local machine.

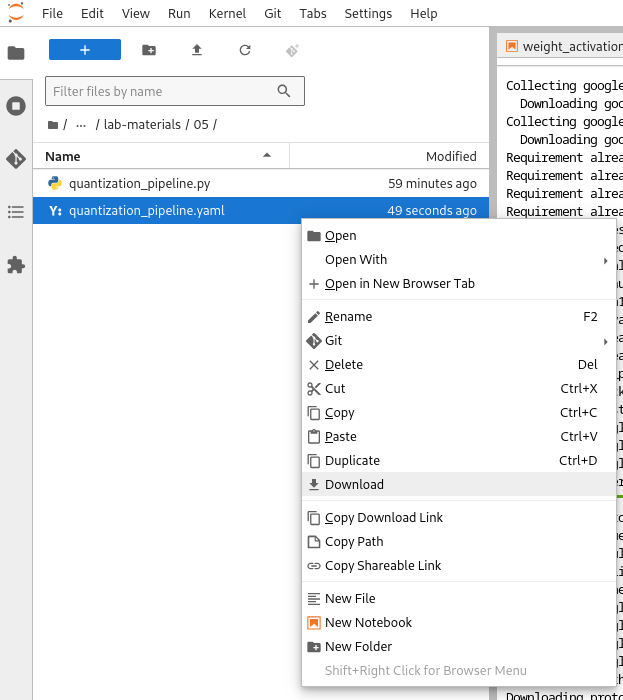

05 download pipeline
🚨 Once you got the quantization_pipeline.yaml file and you no longer need the workbench, ensure you stop it so that the associated GPU gets freed and it can be utilized to serve the model or running the pipeline.
03 workbench done
03 workbench stop

🚀 Running Your Pipeline

The steps to import and launch a pipeline, once you have a configured pipeline server, are the following:

  1. Log into your OpenShift AI instance.

  2. Navigate to Data Science Pipelines → Pipelines.

  3. Click Import Pipeline.

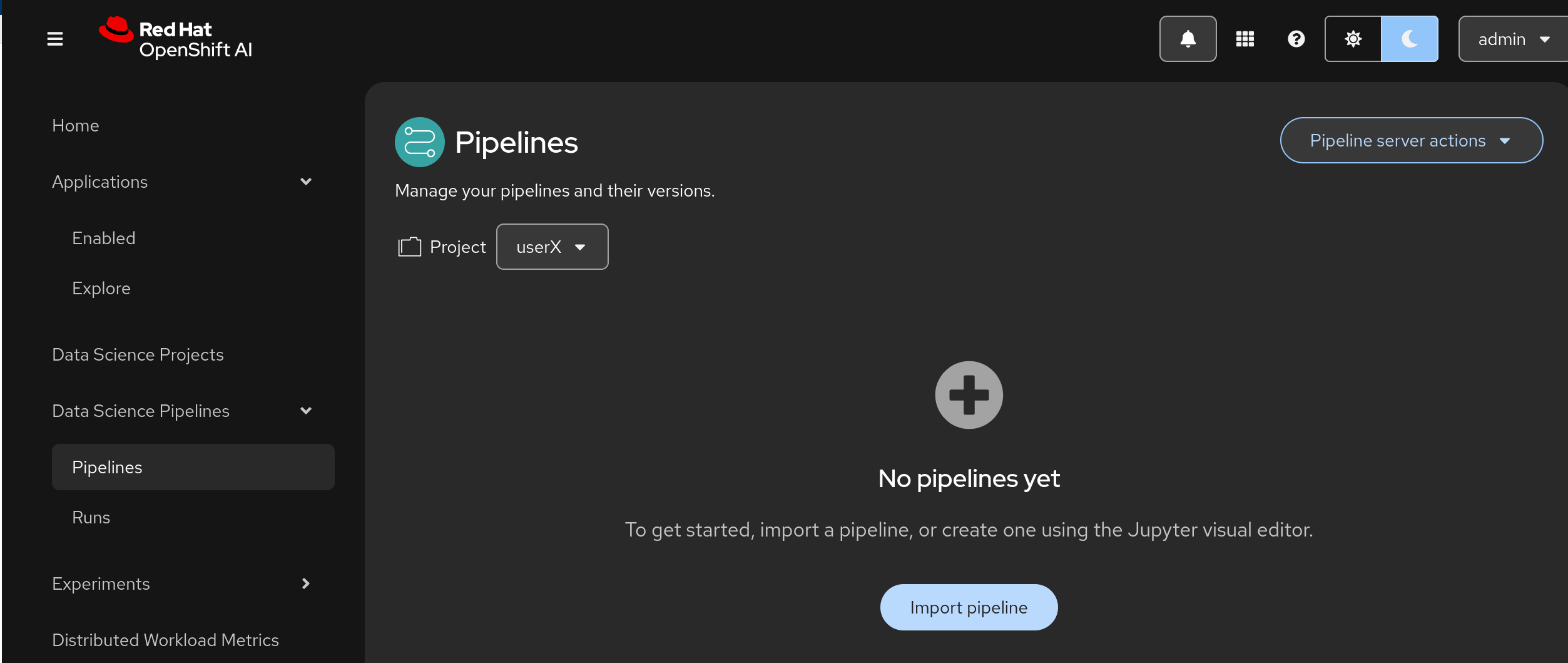

    02 04 import pipeline

  4. Enter a Pipeline name for the pipeline, like: Optimization Pipeline.

  5. Choose Upload and upload the generated quantization_pipeline.yaml file.

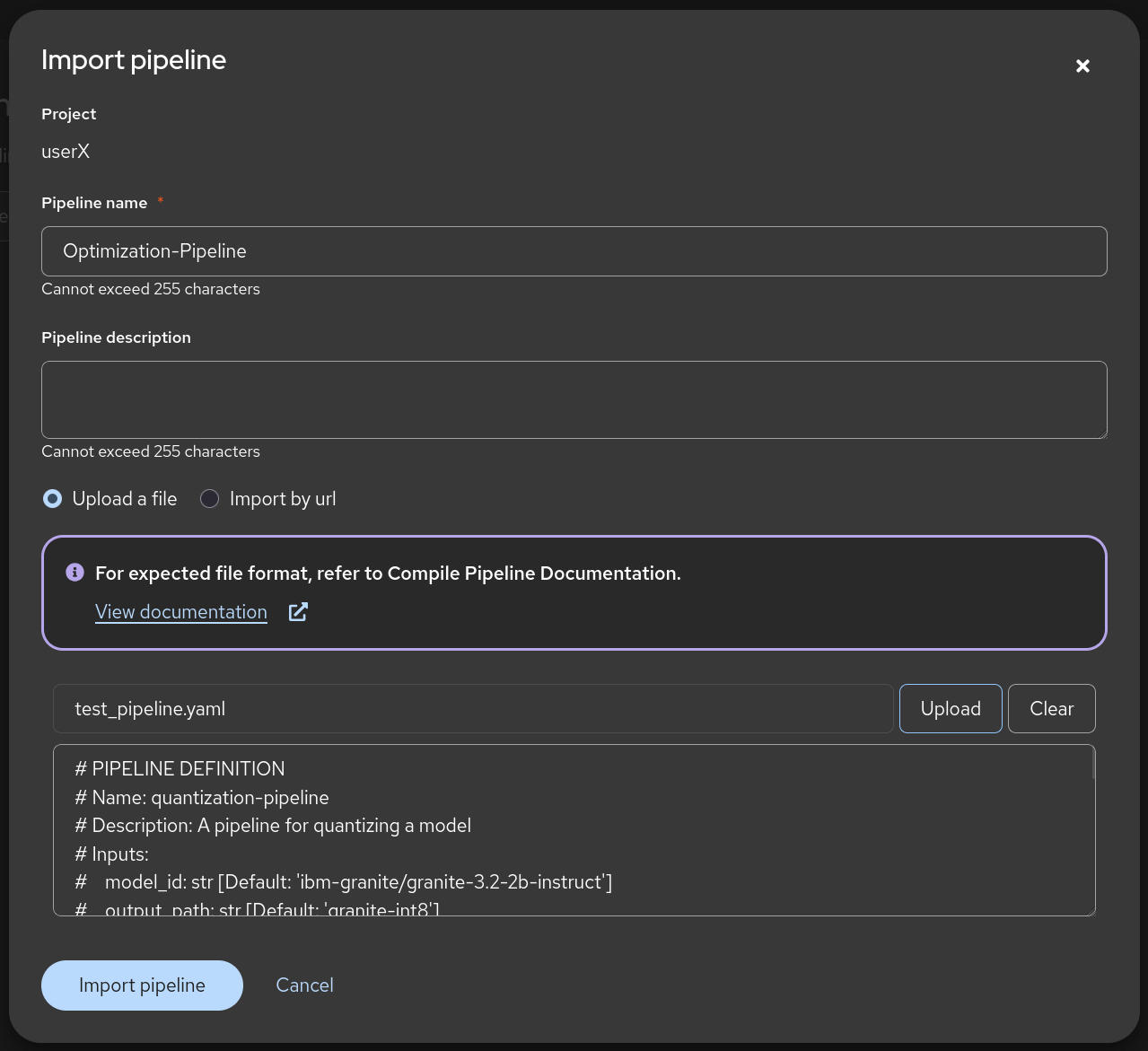

    02 04 import pipeline select

  6. Once the pipeline file is uploaded, click Import pipeline. You can now see the graph of the imported pipeline

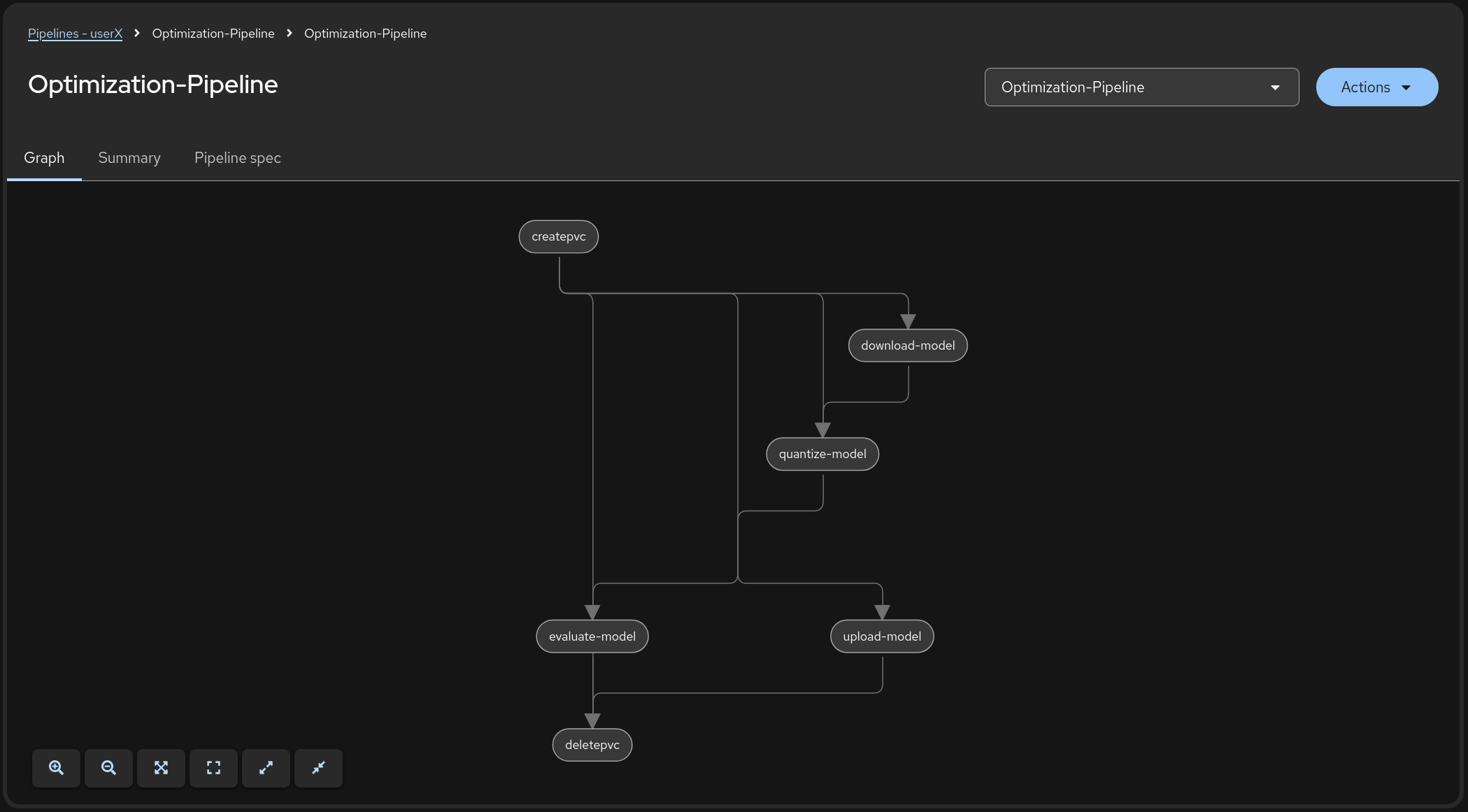

    02 04 import pipeline graph

Pipeline Parameters

To trigger the pipeline, click on the Actions button and then Create run

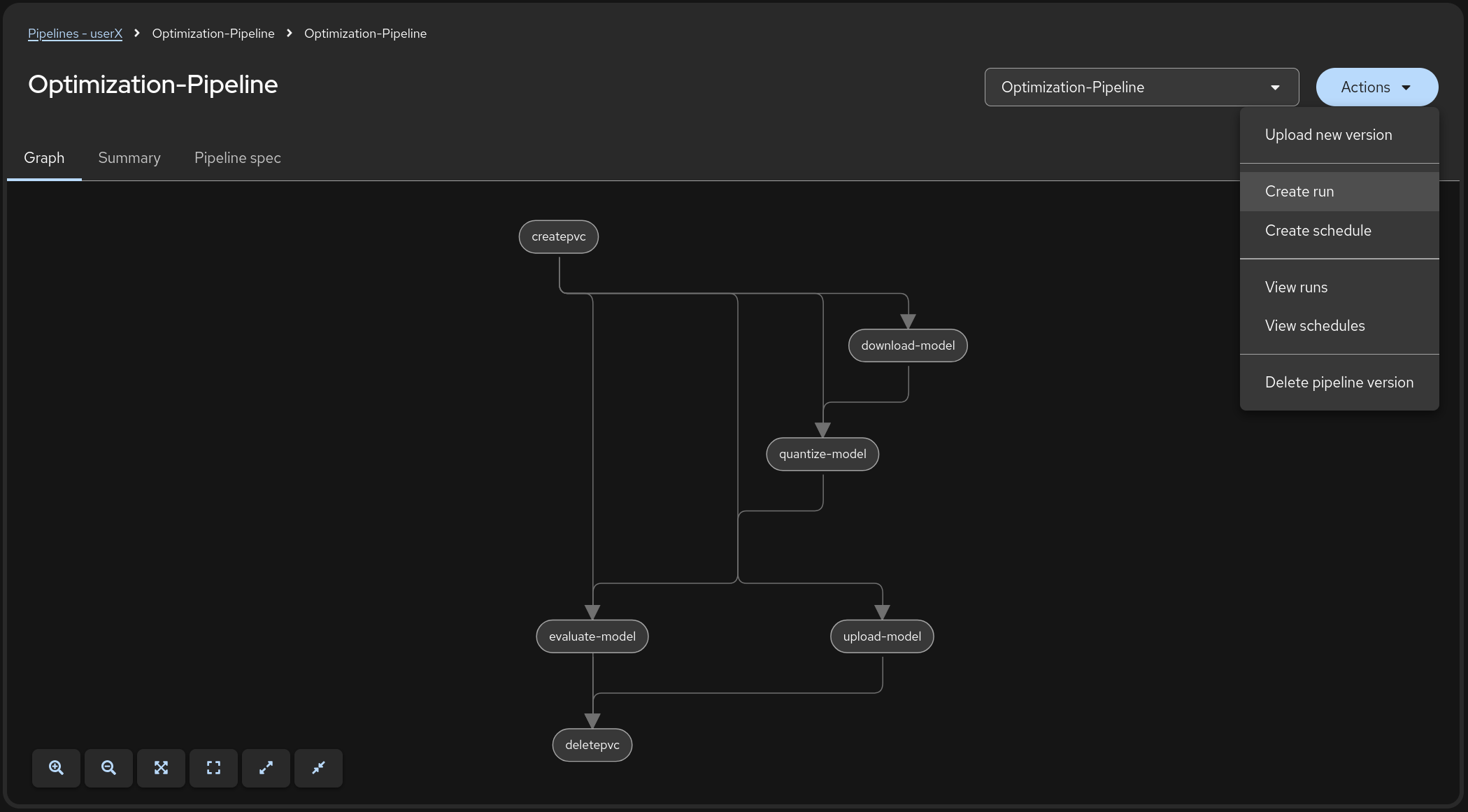

02 04 import pipeline create run

Then fill in the form with the configurable parameters:

  • Add a Name for the run, e.g.: optimize-test.

  • model_id: The Hugging Face model ID (default: ibm-granite/granite-3.2-2b-instruct)

  • output_path: Path for the quantized model (default: granite-int8-pipeline)

  • quantization_type: Type of quantization to perform (default: int8, options: int4 or int8)

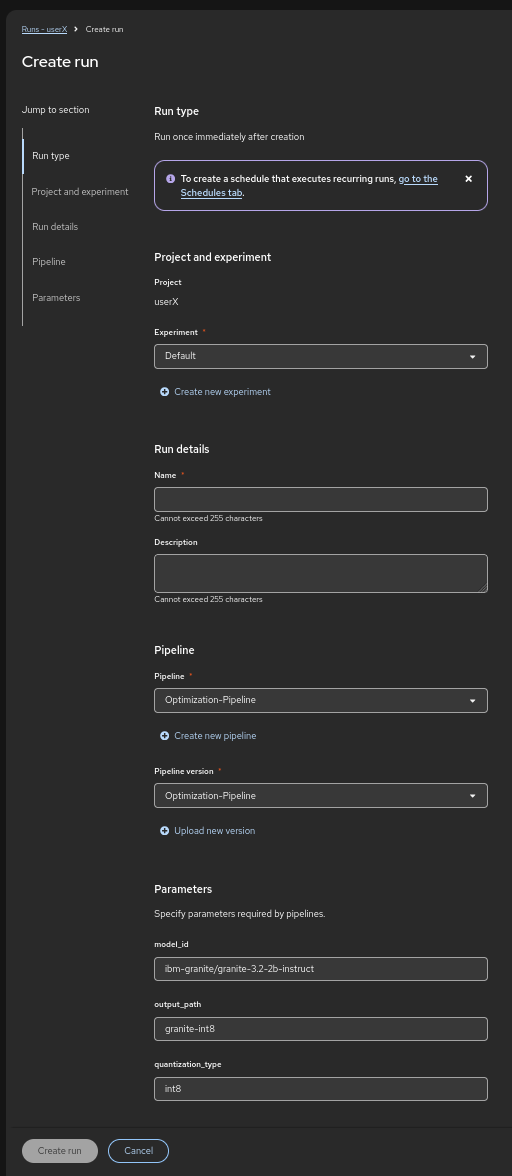

    02 04 import pipeline create run params

And click on the Create run button. After the execution of the pipeline you should have an optimized version uploaded to your S3 bucket

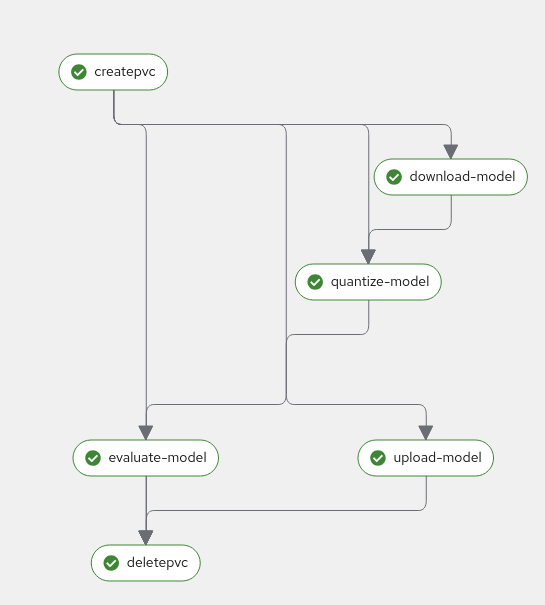

05 pipeline run success

You can check the MinIO S3 bucket at https://minio-ui-wksp-userX.PLACEHOLDER-URL.com/ or with the link at the top right corner. User and password as the same as for OpenShift AI.

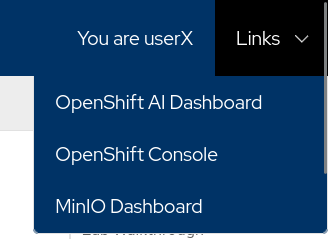

05 minio link

Check the bucket with name userX. You should see the models optimized with the workbenches and the one with the pipeline.

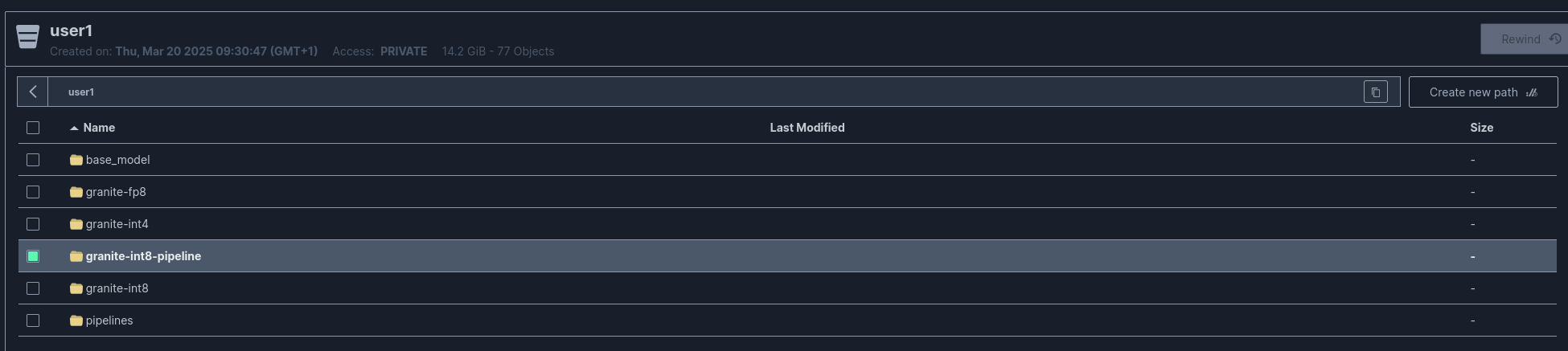

05 pipeline run minio

Storage Requirements

The pipeline creates a PVC with:

  • Size: 30Gi

  • Access Mode: ReadWriteMany

  • Storage Class: standard

Make sure your cluster has the appropriate storage class available.

Data Connection Setup

Before running the pipeline:

  1. Create a data connection in OpenShift AI pointing to your (MinIO) S3 storage. In the above example we reused the one created at Section 2.2 (Minio - models)

  2. The data connection has the next mandatory fields:

    • Connection name: minio-models (harcoded in the source pipeline file)

    • Access Key

    • Secret Key

    • Endpoint

    • Bucket: need to ensure the bucket exists on S3 (MinIO) before triggering the pipeline
